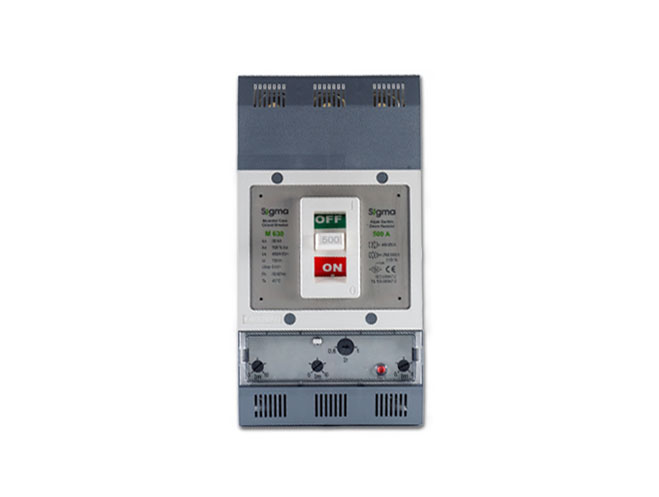

Moulded Case Circuit Breakers are produced according to IEC /EN 60947-2 and CE standards and used for protecting the circuits which have different characteristics like cable, motors, lighting, generators etc.)
L.V MCCB fulfıls 4 dıfferent functıons;
- Close and Trip the circuit
- Protection against Overload
- Protection against Short Circuit Current
- Protection against Earth Leakage Current ( with the combination of Earth Leakage Relay and Torodial Transformer
Maın Features
- Rating From 25A- to 1600A
- 750v AC Rated Insulation Voltage
- 8kV Rated Impulse Withstand Voltage
- 1 and 3 poles
- 25,36,50 and 70kA Rated Ultimate Short-Circuit Breaking Capacity
- Thermal and Magnetic Adjustment ( for 160A and above)
- Wide Range of Accessories
- Current Limiting ( limitor property)
- Silver Alloy Contacts
- Covers and frames made by BMC which the Electrical and Mechanical life is high
- Special production for protecting the different loads
- Complies with EN 60947-2
